- Overview
- Product Parameters
- Product Description
- FAQ
- Packaging & Shipping
Basic Info.
Model NO.
LH20-2000, LH50-2230, LH75-2100
Degrees of Freedom
6-axis
Drive Mode
Hydraulic
Payload Capacity
20kg 50kg 75kg 165kg
Voltage
220V/380V
Usage
Die Casting Production Line
Keyword
Industrial Robotic Arm
Color
Customized
Transport Package
Customzied
Specification
Weight 280kg 550kg 1200kg
Trademark
LONGHUA
Origin
Anhui, China
Production Capacity
50000
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 200.00cm
Package Gross Weight
550.000kg
Product Description

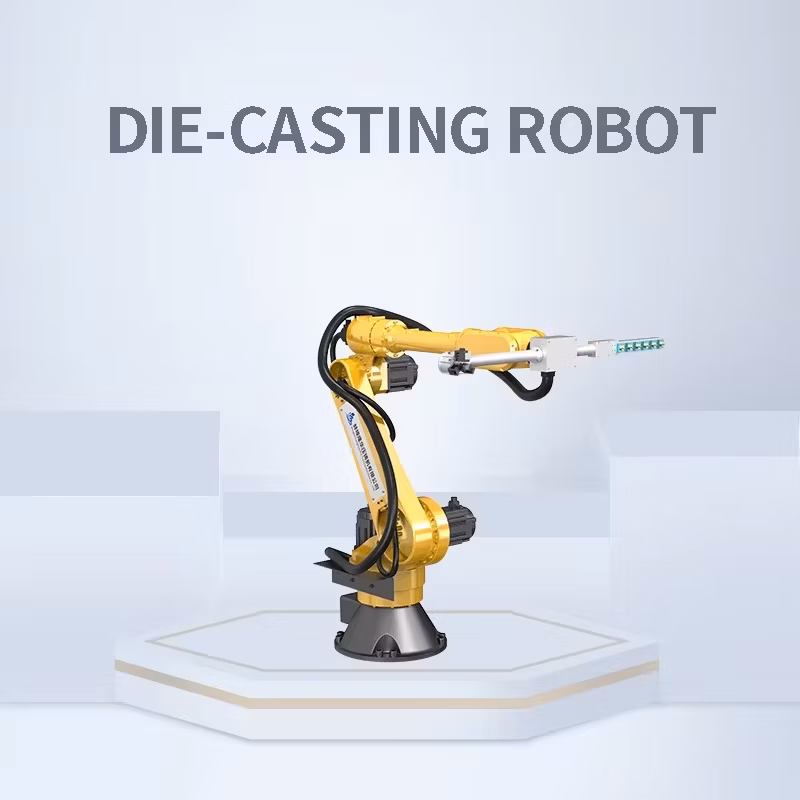

Industrial Automatc Articulated Intelligent Robot Die Casting Accessories
| Model | LH20-2000 | LH50-2230 | LH75-2100 | LH165-2750 | |
| Axes | 6 | 6 | 6 | 6 | |
| Load | 20kg | 50kg | 75kg | 165kg | |
| Weight | 280kg | 550kg | 530kg | 1200kg | |
| Reach | 2000mm | 2238mm | 2112mm | 2750mm | |
| Position repeatability | ±0.03mm | ±0.06mm | ±0.06mm | ±0.01mm | |
| Install type | Floor, Wall, Lifting | Floor | |||
| Ingress Protection | IP54(Wrist:IP67) | ||||
| | Axes 1 | -170°/+170° | -185°/+185° | -170°/+170° | -170°/+170° |
| Axes 2 | -95°/+155° | -75°/+145° | -75°/+145° | -60°/+85° | |
| Axes 3 | -95°/+170° | -120°/+170° | -120°/+170° | -120°/+155° | |
| Axes 4 | -185°/+185° | -350°/+350° | -350°/+350° | -360°/+360° | |
| Axes 5 | -135°/+135° | -120°/+120° | -120°/+120° | -125°/+125° | |
| Axes 6 | -400°/+400° | -360°/+360° | -360°/+360° | -360°/+360° | |
| | Axes 1 | 175°/s | 180°/s | 177°/s | 125°/s |
| Axes 2 | 175°/s | 180°/s | 178°/s | 113°/s | |
| Axes 3 | 170°/s | 180°/s | 173°/s | 125°/s | |
| Axes 4 | 355°/s | 260°/s | 260°/s | 180°/s | |
| Axes 5 | 355°/s | 255°/s | 255°/s | 175°/s | |
| Axes 6 | 600°/s | 370°/s | 370°/s | 280°/s | |
1. Who are we?
Bengbu Longhua Die Casting Machine Co., Ltd is based in Bengbu city, Anhui Province, China. Started export business from 2014, sold to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),Mid East(2.00%).
2. What can you buy from us?
* Die Casting Machine
* Robot For Die Casting Machine
* Die Casting Machine Parts,
* Molds And Castings
* Melting Furnace
3. Why should you choose LongHua?
* Longhua Die Casting Machine has 42 years of production experience, provide stable quality and matured products.
* Longhua Die Casting Machine has 42 years of production experience, provide stable quality and matured products.
* Cooperate with the Chinese Academy of Science and Technology, enable high quality and always innovation.
* Always a pre-production sample before mass production; Always final Inspection before shipment.
4. What terms can we provide?
* Accepted Delivery Terms: FOB;
* Accepted Payment Currency: USD, EUR, CNY;
* Accepted Payment Type: T/T,L/C, Cash;
* Language Spoken:English,Chinese
5. What after-sale services can be provided?
* Professional engineers to enable customers independently operate, use and maintain Anhui Longhua products;
* To answer technical questions in a timely manner, can send people to the user site for assistance in time;
* Provide technical guidance when users need new equipment or expansion (reconstruction) construction;
* After products are upgraded, priority should be given to the replacement of the previous users as required.
Welcome Friends all over the world visit our company and factory in Bengbu City, Anhui Province, China :))
